Garage Plan Ref 5050AHSR

5050AHSRCN
Add to cart
  • Description

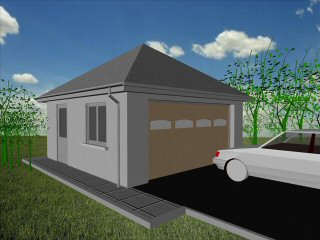

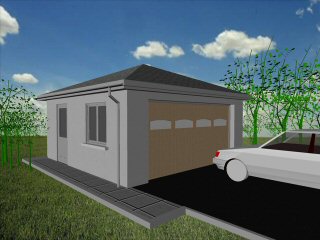

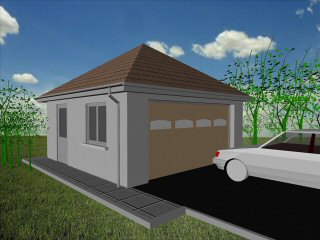

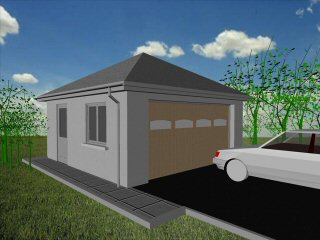

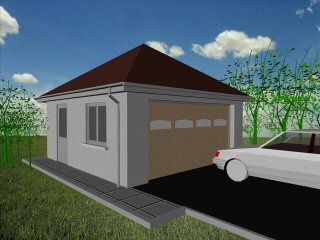

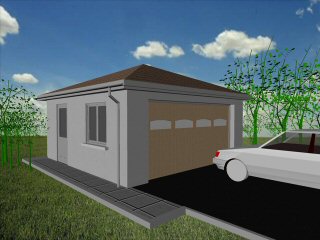

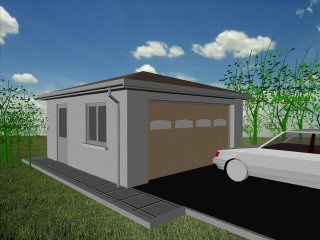

5m x 5m Garage Plan with a Hipped roof - Rendered walls


5.6m x 5.6m Externally
25m² Ground Floor Area
12" Cavity wall construction
Single side door and window
9' x 7' Up and Over Garage Door
Truss rafter roof construction


17.5° roof pitch : Ridge Height = 3.6m
22.5° roof pitch : Ridge Height = 3.9m
30° roof pitch : Ridge Height = 4.3m
35° roof pitch : Ridge Height = 4.7m

This domestic double car garage is ideal for parking the family cars. This is the smallest double garage available. The width of the garage will accommodate two cars side by side. The 9 feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction.

#ff0000>WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
