Garage Plan Ref 6090CLSRCR

6090CLSRCR
Add to cart
  • Description

6m x 9m Garage Plan with a Pitch roof - Rendered walls and Rendered Corner Stones Gable Fronted Roof- style C


6.6m x 9.6m Externally
54m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
7' x 7' Up and Over Garage Door and front window
Truss rafter roof construction

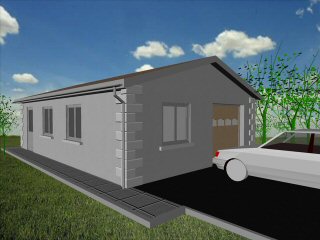

17.5° roof pitch : Ridge Height = 3.8m

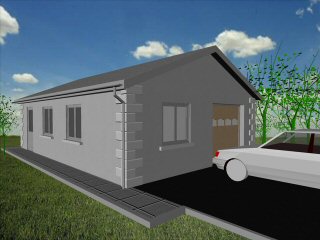

22.5° roof pitch : Ridge Height = 4.1m

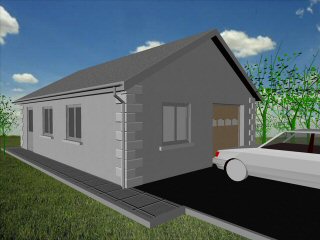

30° roof pitch : Ridge Height = 4.6m

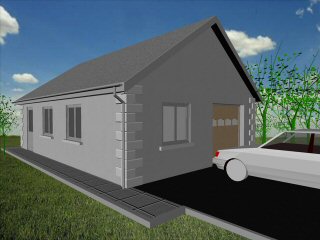

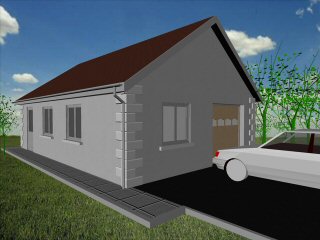

35° roof pitch : Ridge Height = 5m

This domestic two car workshop garage is ideal for parking the family car. Extra space is provided to allow a workshop area to be formed at the side of the car parking space. If a workshop is not required then the space can be used for storage or parking a motorbike. The additional window on the front elevation is supplied to provide extra natural light into the garage. The 7 feet wide garage door allows easy access to the garage. The extra length of the garage allows for extra workspace at the rear of the garage. The cavity wall construction provides water proof construction.
