8m x 6m
>
Single Storey 8060B
>

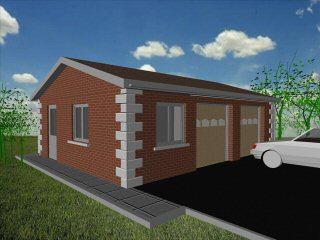

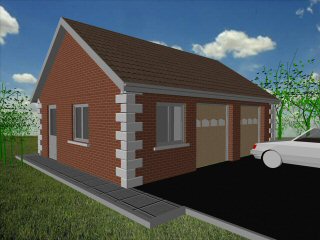

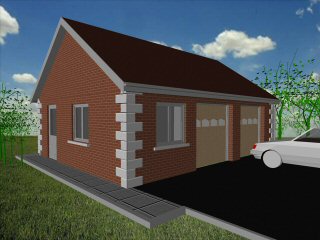

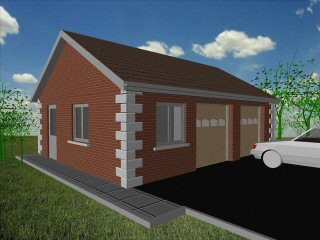

Garage Plan Ref 8060BBSBCR
Garage Plan Ref 8060BBSBCR
Garage Plan Ref 8060BBSBCR
8060BBSBCR
Roof Pitch and Finish
*
17.5° pitch roof - Concrete Interlocking Tiles
22.5° pitch roof - Concrete Interlocking Tiles
22.5° pitch roof - Mineral Fibre Slates
22.5° pitch roof - Natural Slates
30° pitch roof - Concrete Interlocking Tiles
30° pitch roof - Mineral Fibre Slates
30° pitch roof - Natural Slates
35° pitch roof - Concrete Interlocking Tiles
35° pitch roof - Mineral Fibre Slates
35° pitch roof - Natural Slates
35° pitch roof - Clay/Concrete Plain Tiles
Garage to be Mirrored
*
Not Mirrored
Mirrored
Drawing Package
*
By Email - pdf
pdf & 5 printed sets by Post
(
£25.00
)
Add to cart
Description
8m x 6m Garage Plan with a Pitch roof - Brick walls and Rendered Corner Stones Gable Sided Roof- style B
8.6m x 6.6m Externally
48m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 6'-6" x 6'-6" Up and Over Garage Doors and front window
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 3.8m
22.5° roof pitch : Ridge Height = 4.1m
30° roof pitch : Ridge Height = 4.6m
35° roof pitch : Ridge Height = 5m
!
