8m x 8m
>
Single Storey 8080E
>
Garage Plan Ref 8080EHSB
Garage Plan Ref 8080EHSB
Garage Plan Ref 8080EHSB
8080EHSBCN
£
238.00
Roof Pitch and Finish
*

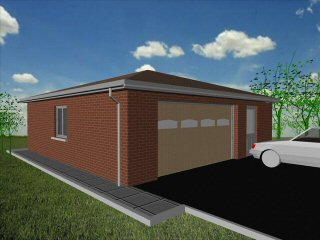

17.5° pitch roof - Concrete Interlocking Tiles
22.5° pitch roof - Concrete Interlocking Tiles

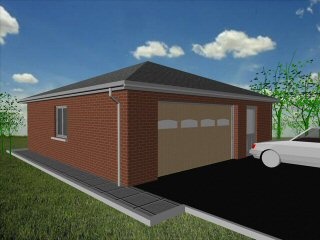

22.5° pitch roof - Mineral Fibre Slates
22.5° pitch roof - Natural Slates
30° pitch roof - Concrete Interlocking Tiles

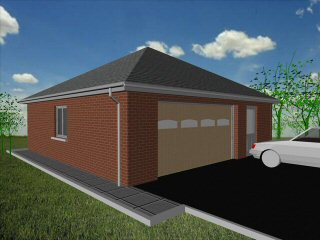

30° pitch roof - Mineral Fibre Slates

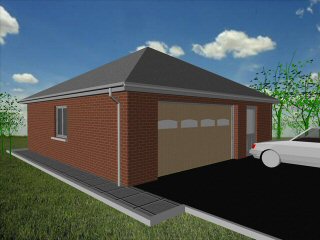

30° pitch roof - Natural Slates
35° pitch roof - Concrete Interlocking Tiles

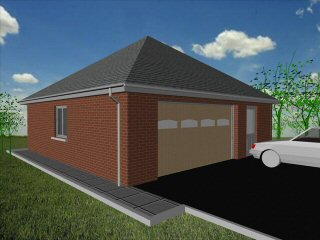

35° pitch roof - Mineral Fibre Slates

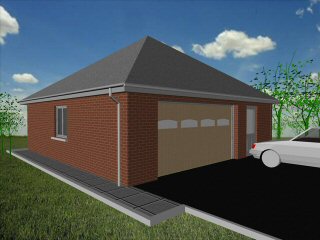

35° pitch roof - Natural Slates

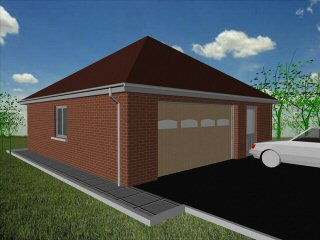

35° pitch roof - Clay/Concrete Plain Tiles
Garage to be Mirrored
*
Not Mirrored
Mirrored
Drawing Package
*
By Email - pdf
pdf & 5 printed sets by Post
(
£25.00
)
Add to cart
Description
8m x 8m Garage Plan with a Hipped roof - Brick walls - style E
8.6m x 8.6m Externally
64m² Ground Floor Area
12" Cavity wall construction
Two side windows
9' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 4.1m
22.5° roof pitch : Ridge Height = 4.5m
30° roof pitch : Ridge Height = 5.2m
35° roof pitch : Ridge Height = 5.7m
!
